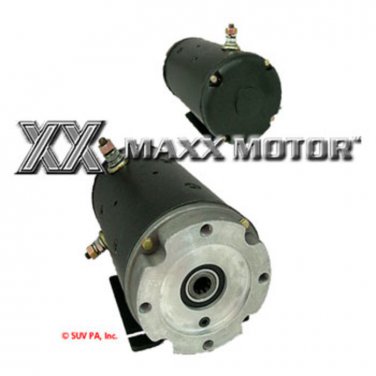

Hydraulic Pump Motor 24V// CW// 9 Spline / 7 HP
Applications: Caterpillar, JS Barnes/Haldex
Power Steering Motors in Caterpillar
Part #: 52010
Aftermarket Motor built to OEM Specifications
Shipped directly from Distributor in Kokomo, Indiana
Voltage: 24.00
Aftermarket
7 HP
Rotation: CW
Field Housing Outside Diameter: 5.031 in.
Overall Length: 10.315 in.
Shaft Outside Diameter: 0.984 in.
Shaft Style: 9 Spline
Terminal 1 Size: 3/18 - 16
Terminal 2 Size: 3/18 - 16
Housing Finish: Drive End is cast aluminum with a black field case.
Weight: 35.9 lbs.
Description
24V -CW - DBB - 9 SPLINED -SEALED
24V CW ) HD 5” DIA. DBB - MFY TYPE MOTOR
WMS PART NUMBER W-4037
REPLACES NUMBERS:
Prestolite MFY-4203
Prestolite MFY-4203S
Prestolite MFY-203D WMS W4037
Barnes 2200943
Barnes 2201043
Prestolite MFY-4203RM
Prestolite 46-4037RM
Prestolite 46-4037
( APPLICATIONS CATERPILLAR, HALDEX, CONCENTRIC
( HAS THE “INTERNAL” ( 9 ) SPLINE
Cross References:
• Prestolite: 2200943
• Prestolite 46-4037
• Prestolite MFY-4203
• Prestolite MFY-4203D
• Prestolite MFY-4203RM
• Prestolite MFY-4203S
• JS Barnes Haldex: 2200943
• Barnes Haldex 2201043
• Prestolite: 464037M
• WMS W4307
•
Replaces part #
Prestolite: 2200943
Prestolite 46-4037
Prestolite MFY-4203
Prestolite MFY-4203D
Prestolite MFY-4203RM
Prestolite MFY-4203S
JS Barnes Haldex: 2200943
Barnes Haldex 2201043
Prestolite: 464037M
WMS W4307
Prestolite 46-4037
Ptestolite MFY-4203
Prestolite MFY-4203D
Prestolite MFY-4203RM
Prestolite MFY-4203S
• JS Barnes Haldex MPN 2200943
