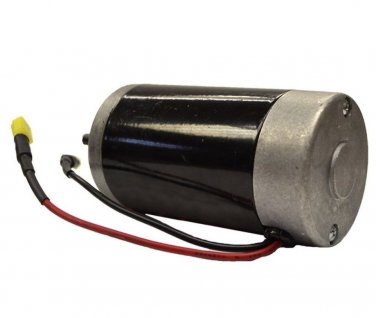

12V* PM 2.75” DIAMETER SPREADER MOTOR
REPLACES NUMBERS, 2809-570006
P-3035, 2809670004, 38133202, 94996, 4204 Etc.
(APPLICATIONS) (WESTERN & FISHER SALT SPREADERS)
(FROM COMM END TO DRIVE END MOTOR LENGTH IS 5”)
CONNECTOR WIRES ARE 7.5” LONG
THE 5mm MOUNTING BOLTS ARE ON 59mm CENTERS
( Shaft is 1.5”/ 38.1mm long & .3125”/ 7.93mm diameter w/a flat area )
Applications: Replacement for the new style P3035 spinner motor with 1/2" shaft.
Fits:
Western Tornado
Fisher Poly Caster
Blizzard Ice Chaser
Part #: 50092
aftermarket motor
shipped from Kokomo Indiana
9 month warranty
Voltage: 12.00
Rotation: BI DIRECTIONAL
Field Housing Outside Diameter: 3.OO"
Shaft Outside Diameter: .500"
Shaft Style: FLAT SIDED
Terminal 1 Size: +/- WIRES AND PLUGS ATTACHED
Housing Finish: BLACK
Replaces:
Western 78300
Western P3035
Western 51041
WMS W2809
Cross References:
Western 78300
Western P3035
Western 51041
WMS W2809
Western 78300
Western P3035
Western 51041
WMS W8815
This aftermarket motor will replace the following:
Western 78300
Western P3035
Western 51041
WMS W8815
http://library.westernplows.com/westernplows/pdffiles/43574.02_111513.pdf
Parts List for the Tornado LT showing this is the correct motor
This aftermarket motor with a 9 Month warranty is sent from the Distributor, so if you need to return you have paperwork and just need to contact me with a RGA steno1024 on yahoo you pay to send back and if found to be under warranty, then you will receive a new motor.
