LOT OF 3 MOTORS FOR FEDERAL SIGNAL Q SIREN B012 SERIES B C

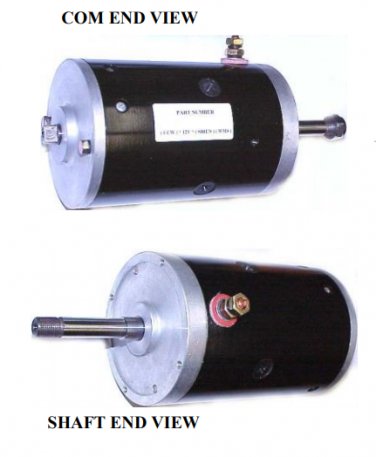

MOTOR FOR FEDERAL SIGNAL Q SIREN SERIES B C & D
APPLICATION:
Models:
•Q2B-012PNSD,
•Q2B-012NNSD
•Q2B-012PSD,
•Series DQ Siren Q2B-012,
•Series B & CQ
Siren Unit Motor Aftermarket Motor
•12V
•CCW
•Double Ball Bearing
•Keyway Shaft.
APPLICATIONS:
•Federal Signal Q & D Series
•Fire Trucks & Emergency Vehicles
•Siren Motor
•Warfield Mfg.
REPLACES PART #'S:
•Prestolite: 46-385, MCW-2050, MCW-4002, MDS-4004, MDS-4005
Application:
•Federal Signal Models: Q2B-012
•Federal Signal Q2B-012NNSD
•Federal Signal Q2B-012PNSD
•Federal Signal Q2B-012PS
Replaces part #
•Federal Signal Z8280080B
•Western Motor Service W-7902, .
•WMS: W-7905
•Voltage: 12.00
•Rotation: CCW
•Field Housing Outside Diameter: 4.500 in.
•Overall Length: 10.94 in.
•Shaft Outside Diameter: 5/8 in.
•Shaft Style: Keyway and threaded
•Terminal 1 Size: 5/16 - 18
•Housing Finish: Drive end and comm end is cast aluminum with field case black painted.
•Weight: 17.20 lbs.
•Double Ball Bearing
4 holes in Drive End Frame for Mounting.
Standard duty
REPLACES PART #'S
•Prestolite: 46-385, MCW-2050, MCW-4002, MDS-4004, MDS-4005
Application: Models:
Federal Signal: Q2B-012, Q2B-012NNSD, Q2B-012PNSD, Q2B-012PSD
This aftermarket motor will replace the following part #'s
•Federal Signal Z8280080B
•Western Motor Service W-7902, W-7905
These are one of the most expensive motors that I offer and believe me, I am paying the big bucks for this baby.
We are an all American family owned business. Im the Mom and my two sons Andrew and Paul help me
